Surface Velocity Radar | Hand-held SVR radar for Water Flow measurement

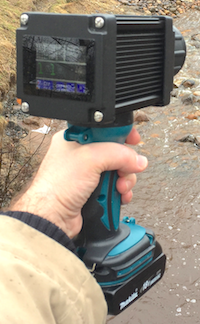

Viatronics SVR-3 ProTM handheld surface velocity flow radar is designed specifically to measure surface velocity speed of streams, canals, rivers and even pipelines. The SVR gives you precise speed measurement from a fixed stationary position outside the body of water. SVR provides easy and safe water and liquid flow measurement. Now even with LCD touch screen!
Part Number: ViaRadar SVR-3 Pro
IN STOCK
About
ViaRadar Stationary SVR-3 ProTM - Surface Velocity Radar for Water and Liquid Speed Measurement
About
The flow velocity sensor is designed for non-contact measurement of the surface flow velocity of bodies of water. Radar signals reflected by the moving surface of the water are used to determine the flow velocity of the irradiated surface. Compact construction and a noncontact measurement principle enable simple use.
Application areas include open channels, flumes and enclosed drains. The ViaRadar Stationary is especially suitable for measuring tasks where the use of conventional measuring systems is problematic, e.g. in the event of flooding.
This sensor is impressive thanks to its low energy consumption and high operational dependability. It allows continuous recording of flow velocity and, by approximation, discharge.
The set up and parameters are assigned simply and conveniently by using a PC or laptop via standard terminal programs.
Points of Interest:
- Non-contact Fast Measurements
- Powered by Makita
- Automatical Vertical Angle Compensation
- Adjustable Horizontal Angle
- Detection of Flow Direction
- Elimination of Environmental Influences
- High Accuracy
- Low Power Consumption
- User Friendly Operation
- Small, Compact Design
- Data logger
- LCD touch screen!!!
