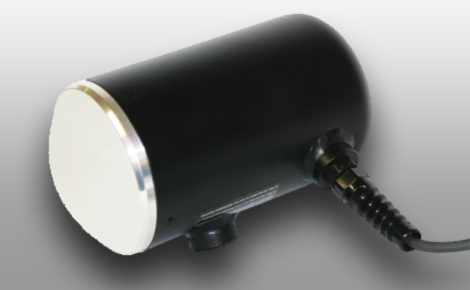

ViaRadar

The stand-alone ViaRadarTM stationary radar unit sets new standards for size and configurability.The ViaRadarTM is designed for maximum flexibility and ease of use. Small size and extremely low current consumption are perfect for OEM applications.

Information outputs to a serial port for communication with standard numeric display signs, radar message trailers, computers, and conveyer belt controls.

Part Number: ViaRadar


About

Special Application Radar


The ViaRadarTM is designed for maximum flexibility and ease of use. Small size and extremely low current consumption are perfect for OEM applications.

The ViaRadarTM includes software that allows the user to quickly program the unit in multiple configurations. Simple apply power and the Via-Radar will provide speed data with a configurable RS 232 signal.

  • - Revolutionary low power design - dramatically improves battery life consuming 1/3 power of competing radar units.
  • - Smallest radar in the industry – only 10 cm x 10 cm x 5,5 cm allowing you to easily mount the unit.
  • - IP66 classified housing provides protection from weather.
  • - Digital Signal Processing (DSP) directional radar – track target direction of approaching, receding or both
  • - Target modes

- Vehicle tracking - provides longer tracking history with a 2 second target hang time.
- Sports tracking – allows quick acquisition time and only a 1/2 second target hang time

Alarm trip speed setting enables separate trigger. If a target is detected above the trip speed, a line in the interface cable is pulled low. This is used to set off flashing lights, camera, etc. There is also a delay variable associated with the alarm that allows the user to set a fixed time the alarm will stay active once the target is no longer above the trip speed.

Features



- K-Band Antenna
- Directional
- RS232 Serial Port
- Stationary Mounted Radar Systems
- User selectable 1 - 240 KPH / 1 - 150 MPH Speed Range
- Range: 1000 meter (3280 ft) maximum range
- Highly Customizable to Meet Customers Needs


Programmable Functions


- Adjustable range / sensitivity
- program the radar sensitivity with 5 different settings. - Adjustable Speed Range, Down to 1 KPH/MPH
- Selectable Units of Measure
- Selectable Target Direction
- Adjustable Output Rates
- Adjustable Baud Rates
